N+ Bike Shoe platform

3D-printed cycling shoe platform with swappable outsoles for riding and hiking

link->

Challenges

Build adaptable bikepacking footwear with variable stiffness outsoles for riding and hiking.
Most adventure cyclists ride through variety of climate and terrain.
With composite shanks, hardware and foams, cycling shoes are a multi-material disposal disaster.

Outcomes

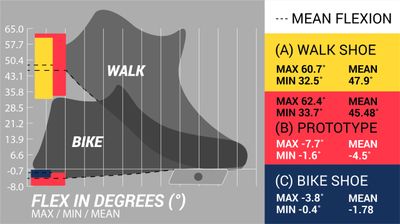

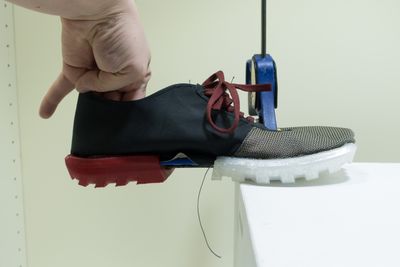

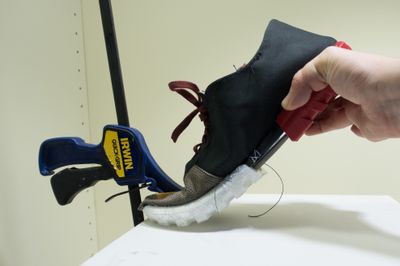

A pleated rigid core that stops just shy of the metatarsal. Testing showed walkability close to a trail runner, while maintaining pedal stiffness comparable to a mountain bike shoe.

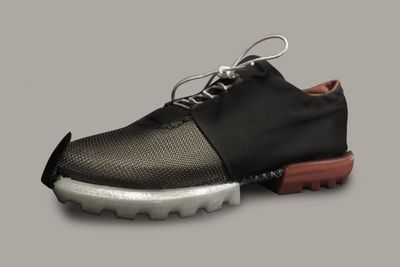

The N+ Platform - a quiver-killer of a shoe design that adapts to different types of riding, weather and adventures.
World's first additive-enabled, open source cycling shoe. Modular, serviceable, repairable with an open source design riders can adapt to their own needs. Semi-circular 3D printed TPU soles can be recycled into feedstock for new soles.

N+ is a bicycle shoe designed to provide a stiff pedaling platform while maintaining walkability off the bike. It's also an open-source design that's modular, serviceable and can be produced with readily available tools and techniques. It's a project exploring new consumer models of ownership and challenging expectations around the product life cycle.

Bachelor of Design thesis project, 2016 - read the Thesis Report

Research

The core research focused on variable stiffness outsoles. The paradox: a walking/hiking shoe isn't ideal for biking, and a bike shoe is notoriously clumsy to walk in.

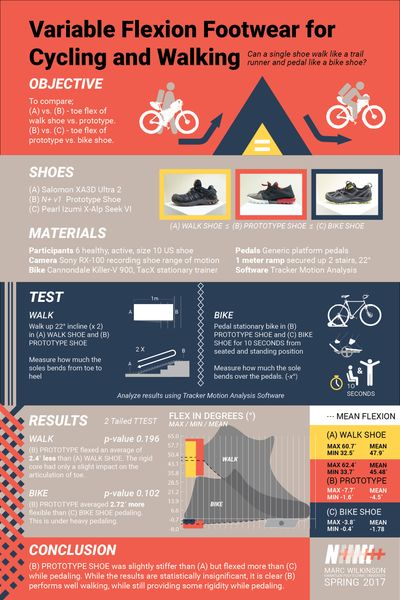

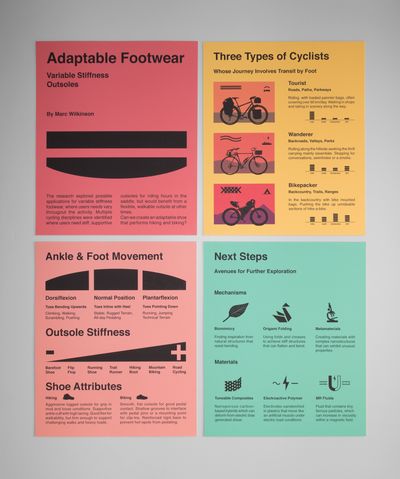

Early research posters identifying challenge & opportunities

A mix of sketches at various fidelity

Assorted artefacts arranged on a wall

Exploded view of a concept (illustrator)

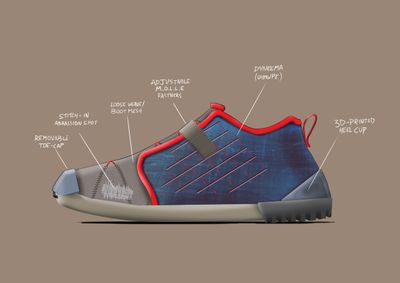

Rendered concept (photoshop)

Design

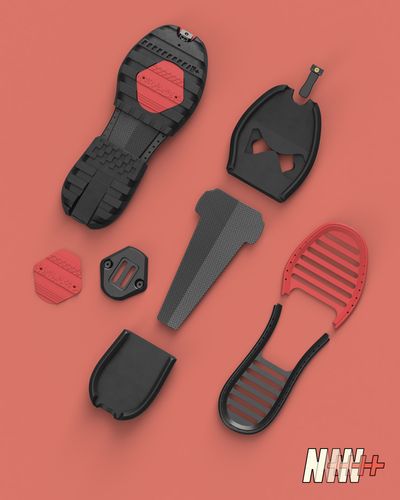

Render in Fusion360 - one assembly surrounded by disassembled counterpart

Modular Design

The shoe is designed as a modular system that allows riders to tweak and tune the shoe in the same way they would get a bike 'dialed' for a particular adventure.

Easy to repair and disassemble
replaceable outsole made without glue
repairable and interchangeable textile
tunable for different conditions, seasons, rides

As a bonus, non-traditional construction makes for a more sustainable extended product lifecycle. High-wear pieces like the outsole can be replaced when they're worn, and at different rates too — pedal wear happening faster than walking/heel wear. Textiles that tear or stink can be washed, repaired or replaced. The composite core, which will last centuries, fits a range of sizes and can be reused forever - leave it in your will!

Additive-Enabled

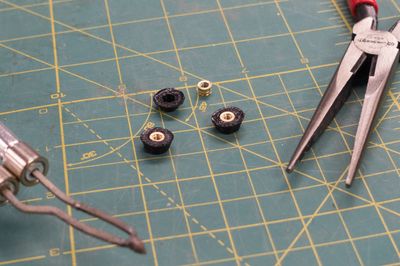

I use the term 'additive-enabled' because the composite core is made using a 3D printed mold and 3D printed threaded inserts. The textile uppers are produced with good old fashioned textile technologies.

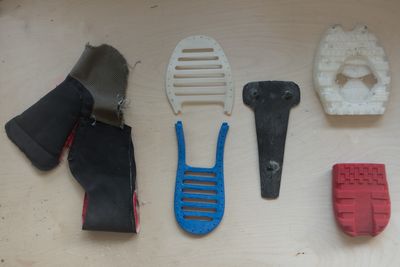

The frame (heel & toe), outsole (heel & toe), pedal inserts (platform & SPD) and toe-guard were all 3D printed. The last was also printed.

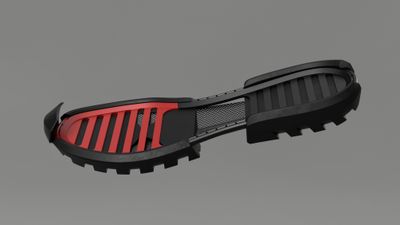

Render shown without textile uppers

Close-up of 3D printed TPU outsole

Open-source Platform

This project wouldn't have happened without the RepRap project and affordable 3D printing. I released the designs under an open source license to enable a few interesting possibilities;

People creating and sharing patterns and designs and components for free or profit
- It would allow space for cottage makers to produce textile uppers, an interesting challenge and SKU
Collaboration & competition
- Imagine tire manufacturers adapt their existing tire tread catalog to fit the shoes
- Imagine composite companies producing and selling cores
- Imagine clothing and accessory brands can step into the shoe market with textile uppers and other parts
Make nice bike shoes more accessible
- People can make do with what they have available to hack together a decent shoe for themselves, that idea is pretty unthinkable for performance cycling shoes.
- Eventually a market of used components (carbon cores) could exist to be combined with new replacement parts (fresh treads, textile uppers)
