Reports Section

Modular analytics platform rebuilt around a BI tool for faster iteration

Challenges

Gap between custom reporting and availability in the platform
Professional Services had reached the limitations of their existing tools
New metrics were being introduced as either a new table on existing tabs, or as a new tab with more tables and graphs
Inconsistent dataviz experience between BI reports vs. existing graphs

The Outcome

Integrated a BI tool into the web platform & leveraging the available functionality.
A delivery mechanism for custom and one off reports previously delivered as PDFs
Went from 5+ tabs with no flow to an extensible 2 page template design
More engineering capacity for high value development, less time playing catch-up in the frontend

Background

Sema makes code quality and development analytics for Fortune 500 companies, delivered through a web platform alongside professional services — individualized reporting, technical due diligence and tailored recommendations.

Phase 1 — Agile MVP

To test BI tool integration, we added a single Reports tab housing a white-label Mode Analytics embed. All users saw the same report with org-specific data. It launched with 2 queries as an MVP and grew to over a dozen queries and graphs, CSS navigation and tooltips — all with minimal engineering resources.

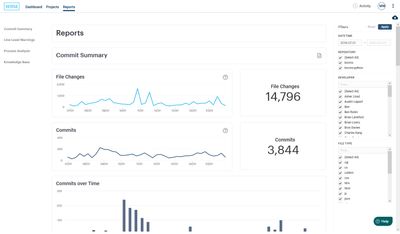

White-label embed reports section using built-in filters, styled with CSS

Professional Services began preparing custom reports in the BI tool, and I — the entire product & design team — added queries, graphs, navigation, tooltips and styling through the native HTML/CSS editor.

The embedded reports and data lake proved a big win as engineering resources were limited. It became the most visited page, had the highest engagement, and user feedback was clear — more of this.

The BI tool bet paid off. Engineering resources were spread thin, but Phase 1 progress required minimal engineering effort — we shipped new reports faster than our weekly release cadence. The intuitive interface let me, researchers and analysts contribute directly, keeping analysts entirely within the BI tool.

Things go well until they don't

Engineering, Product and Professional Services all agreed on the success of this integration, but we began to notice a few issues;

Discrepancies in data caused by one of 2 issues; calculation in SQL didn't match back-end calculations, a delay between the database and data lake.
Poor page performance as more queries were added to a single report
Hard to navigate and CSS navigation workaround made it delicate adding new queries
Native filtering in BI tool was becoming convoluted, and a challenge to maintain interactivity across queries
Inconsistent experience in the reports vs existing functionality
Can't save and share views, or deliver custom reports — functionality users expected.

Phase 2 — a more elegant solution

We could see a never ending game of catch up, adding report metrics to core platform each time a new report or metric was generated. This would create further fragmentation between the platform and the reports.

This is where lightning struck — a chance to clear house, simplifying the product experience, reducing maintenance and maximize value of the integrated BI tool.

This solution worked on both the design and product management levels — a flexible, extensible reports experience that makes full use of the BI tool's white-label embeds, increasing delivery speed and reducing engineering effort.

We had a chance to replace all the current navigation pages (3 top level, 5 sub-pages + project selector) with 3 functional components;

Reports Section - a list of available reports
Report Template - a page housing the iFrame embed of the selected report
Report filters - using our own filter layer instead of the BI tools built-in filters

This was an elegant solution providing improved interaction, no lost functionality and a clean slate for broad product updates to follow.

1. Reports Section

Instead of a single page housing one report, we could use the BI tools API to populate a list of available reports which live separately in the BI tool. We could replicate all current product pages into individual reports, work that was already done to support Professional Services.

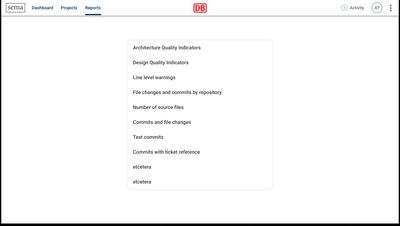

Reports section - a simple list of reports the user is scoped to access

2. Report Template

This design uses a Material Design top bar with a back button (returns to Reports Section), report title (pulled from the API) and filter and download icons. The content would be a iFrame that loads the report housed in the BI tool. Aside from the report title and back button, this was already built for the current Reports section.

Report template - a white-label embedded iFrame from the BI tool

3. Filters

The BI tool's built in filters had limitations; there was no visibility into what was being filtered, which meant we couldn't learn from or save filters. The native PDF output in the BI tool didn't include applied filters, so users would download an unfiltered output. By implementing our own filters we could have full visibility into usage, and create an additional layer outside of the tool to group repositories and teams without modifying existing queries.

Report filters - users apply filters in our UI which get passed as parameters to the BI tool

Clean slate for the next product phase

After building this design for a new report section, I realized it had the potential to clear out the entire navigation. All secondary navigation links could be broken up and replicated as reports. A 'Dashboard' report in the BI tool eliminates the need for the Dashboard tab. Reports are cross-repository, so the Projects tab would be replaced by the dropdown filter.

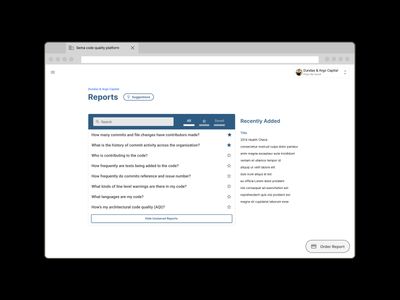

The Reports section becomes a freestanding experience, integrating into a redesigned product experience

We would benefit from having the current offering consolidated into a single, extensible Reports section. This change would forgive existing design and tech debt, giving us a clean slate to focus on building higher-value interaction with the data outside of seeing it in reports.

Takeaways

There were a lot of benefits that come with this switch. It would allow us to;

Collect usage analytics
Save and share filtered views
Use the PDF output functionality of the BI tool for one-time or scheduled frequency
Give us control over grouping functionality (repositories → projects, people → teams)
Deliver interactive ad-hoc reports, Health Checks and Due Diligence to customers through the web app instead of time consuming PDF. This delivery could happen independent of engineering and outside of the release cycle.
Cross-project views and comparison that wasn't available in the core product
All graphing and tables would come from the BI tool, which allows us to delete a significant amount of legacy code and reduce app size
